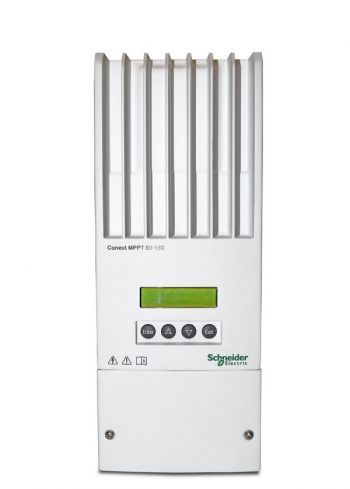

Schneider Electric Conext MPPT 60 150 Solar Charge Controller
₦297,737.80Exc VAT
The Conext MPPT 60 150 is a photovoltaic (PV) charge controller that tracks the maximum power point of a PV array to deliver the maximum available current for charging batteries. When charging, the MPPT 60 150 regulates battery voltage and output current based on the amount of energy available from the PV array and state-of-charge of the battery.
- Description
- Additional information
- Reviews (0)
- Product Specifications
Description
MPPT multi-stage charging, better battery life
The Conext MPPT 60 150 is a photovoltaic (PV) charge controller that tracks the maximum power point of a PV array to deliver the maximum available current for charging batteries. When charging, the MPPT 60 150 regulates battery voltage and output current based on the amount of energy available from the PV array and state-of-charge of the battery.
Additional information
| Brand | Schneider Electric |
|---|
Only logged in customers who have purchased this product may leave a review.
Electrical specifications
⦁ Nominal battery Voltage: 12, 24, 36, 48, 60VDC
⦁ Battery operating voltage: 0Vdc to 80Vdc
⦁ Max charge current: 60A (except 60V)
⦁ Max Output Power: 3500W
⦁ PV operating voltage: 140Vdc
⦁ Max PV open circuit voltage: 150Vdc
⦁ Efficiency: 93% (nominal 12 V), 96% (nominal 24 V), 97% (nominal 36 V), 98% (nominal 48 V), 99% (nominal 60 V)
⦁ Power consumption, Night time: 2.5W
⦁ Supported battery types: Flooded, AGM, GEL, Custom
⦁ Operation temp range: -20°C to 45°C
⦁ Dimensions (mm) (LxBxH): 368x146x138
⦁ Weight: 4.8kg
⦁ Protection: IP20
