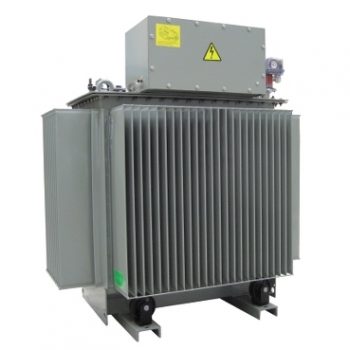

Schneider Electric Minera Ground Mounted
Oil-Immersed Transformer up to 3.15 MVA, 36 kV
Benefits
Proven and permanently optimized technology
- High versatility throughout the entire range
- High quality and reliability
- Long service life with minimum maintenance
- Easy recycling
Applications
- Utilities: Transmission and Distribution Network
- Small Industries: Textile, Automotive, Pharmaceutics, Food…
- Renewable Energies: Solar, Wind onshore and offshore, Biomass…
- O&G Industries: Refineries, Onshore and offshore platform, Pipelines…
- Description
- Additional information
Description
Minera – Ground Mounted
Cost effective solution for your particular distribution network
Features
- Rated power from 50 kVA up to 2.5 MVA
- Rated insulation level up to 36 kV (other rated level on request)
- Rated frequency 50 or 60 Hz
- Mineral oil insulating liquid
- Hermetically sealed or breathing with conservator
- Naturally cooled (ONAN) or air forced (ONAF) on request
- Conventional losses or high efficiency ranges
- Off-Circuit Tap Changer (OCTC) or On-Load Tap Changer (OLTC) on request
Specific designs:
- Low flammability dielectric liquids (Vegeta or Siltrim ranges)
- Compact design (Siltrim range)
- Hazardous zones (ATEX Transformers range)
- Rectifier feeder (Rectifier Transformers range)
Additional information
| Brand | Schneider Electric |
|---|
